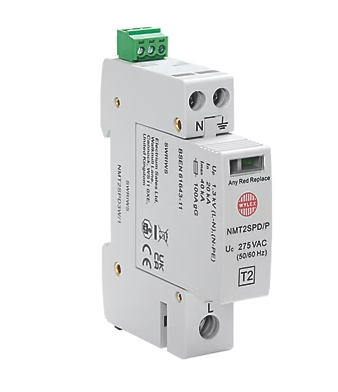

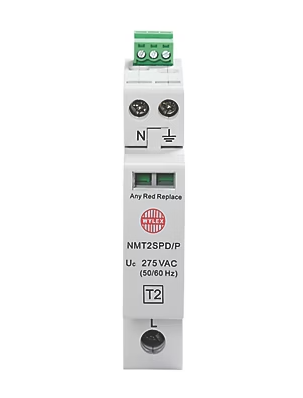

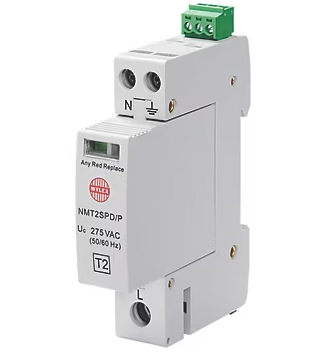

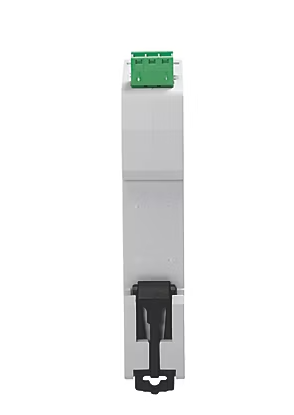

Wylex DP Type 2 Miniature Surge Protection Device 40kA
£51.49
18th Edition Amendment 2. For use with Wylex consumer units. Single module including all connections, fits in way 1 next to main switch. Features status indicators showing if the device has been activated and includes volt-free contacts for remote monitoring and signalling. Connects directly to busbar.
DIN Rail Mounted Fitting
Specification | |
|---|---|
Brand | Wylex |
CSU Device | SPDs |
Incomer Fitting Type | DIN Rail Mounted |
Manufacturer Guarantee | 1 Year Guarantee |
Max. Continuous Voltage (Uc) | 275 V |
Max. Discharge Current (Imax) | 40 kA |
Model No | GB6:SFNMT2SPD3W/1 |
No. of Phases | Single-Phase |
Nominal Discharge Current (In) | 20 kA |
Number of Poles | Double Pole |
Pack Size | 1 |
Pieces in Pack/Case | 1 |
Product Type | Miniature Surge Protection Device |
SPD Type | Type 2 |
Suitable Cable Size | 50 mm² |
z1 - UK Manufacturer Name | Electrium Sales Ltd |
z2 - UK Manufacturer Postal Address | Walkmill Lane, Cannock, West Midlands, WS11 OXE |
z3 - UK Manufacturer Electronic Address | |
z4 - EU Manufacturer Name | Siemens Ltd |
z5 - EU Manufacturer Postal Address | Old Finglas Road, Dublin, Ireland |
z6 - EU Manufacturer Electronic Address | |
